Chevron Belts

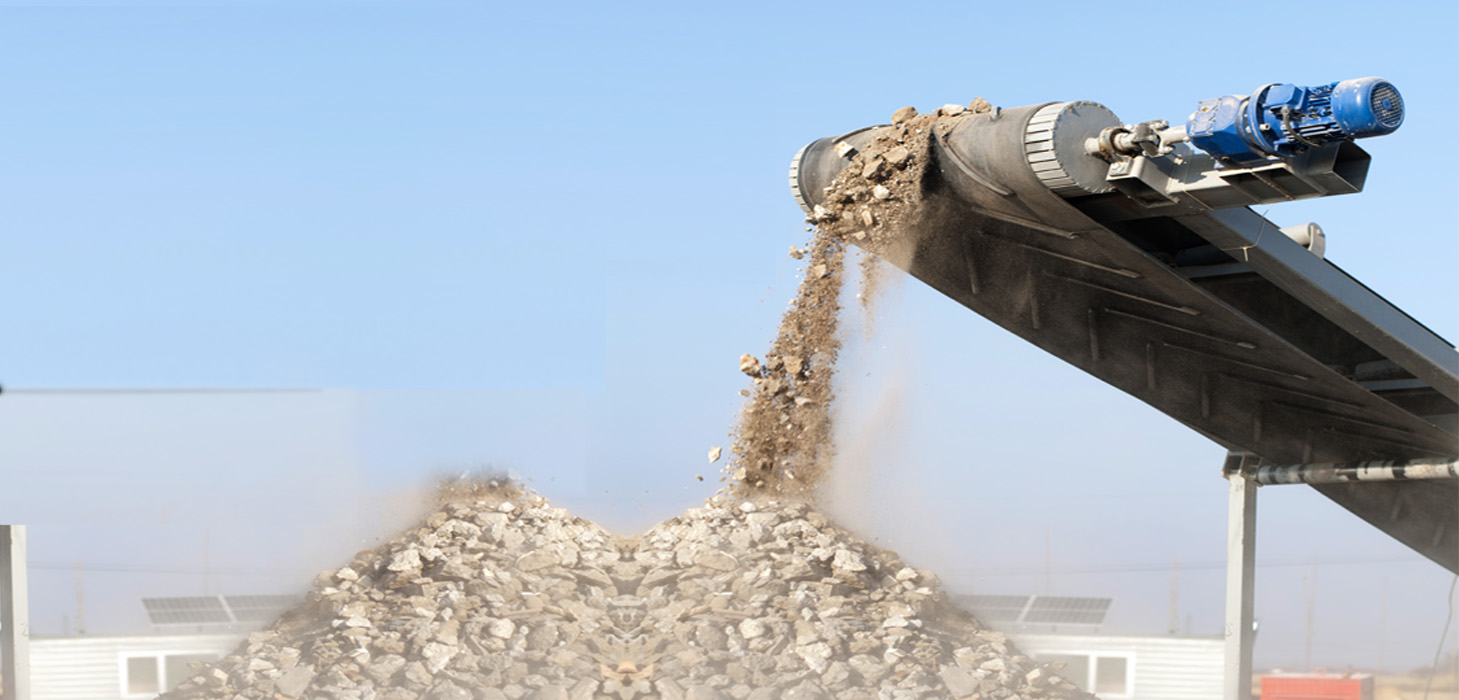

The chevron conveyor belts are used for carrying wet, loose sand and grain materials in bugs. In addition to a range for normal bulk goods, various special types are available for conveying hot goods, for the transport of goods containing oil and grease, for steep-incline conveying and with special reinforcing materials for particular applications.
The v-shape of the chevron cleats prevents the material from sliding back.

SPECIAL FEATURES

  • Longer working life
  • Can carry loose materials at angle of 17-18 and bagged material at 30-35
  • Cleat angle and pitch are designed for smooth travel over return idlers
  • Cleats and the top cover rubber are mono block molding for strength

Application

  • Wood Chips
  • Sand and Gravel
  • Heavy Duty Scrap Metal
  • Minerals - Coal and Ore
  • Materials - Fine Coal and Grains
  • Waste and Recycling Plants
  • Road Construction
  • Bagged Materials

Advantages

  • Excellent flame & antistatic properties.
  • Excellent impact & rip resistance.
  • Ideal for applications in coal mines, power stations & metallurgy industries.

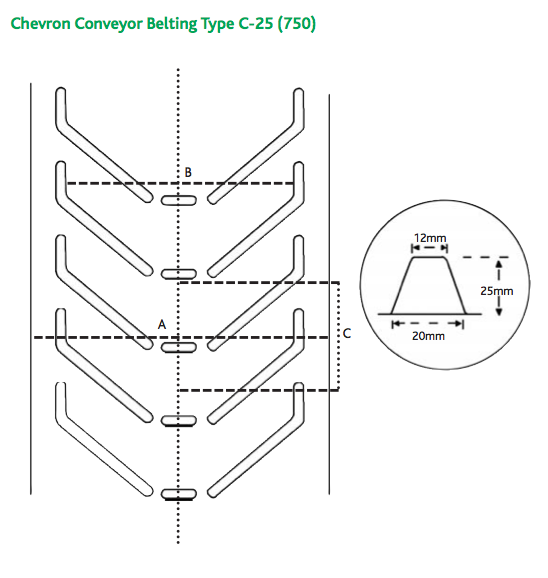

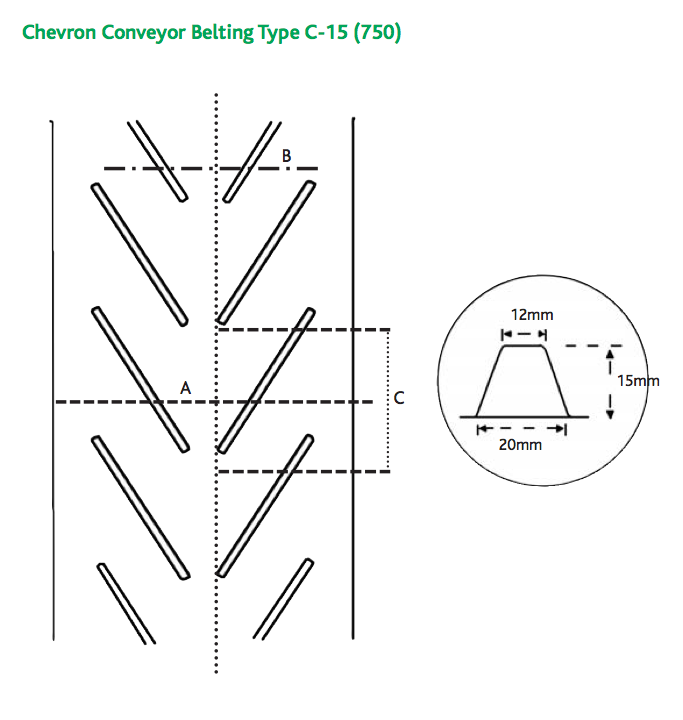

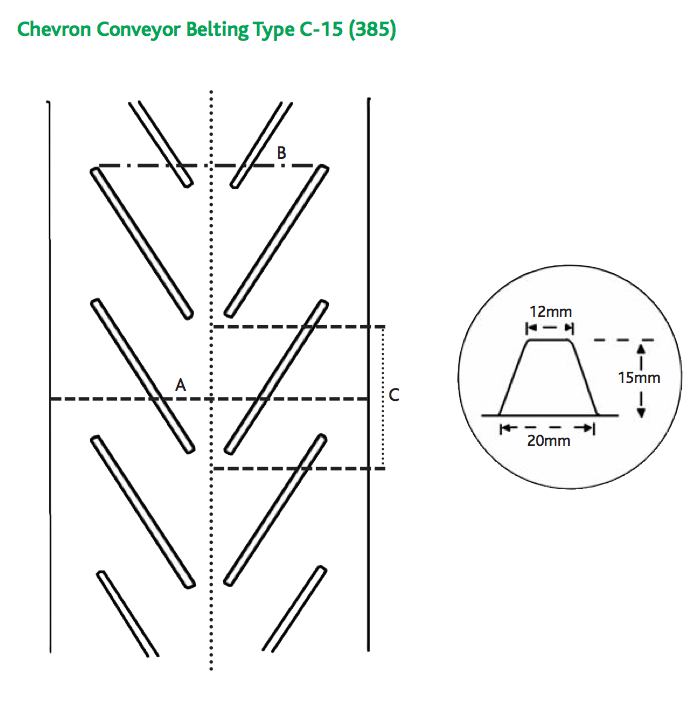

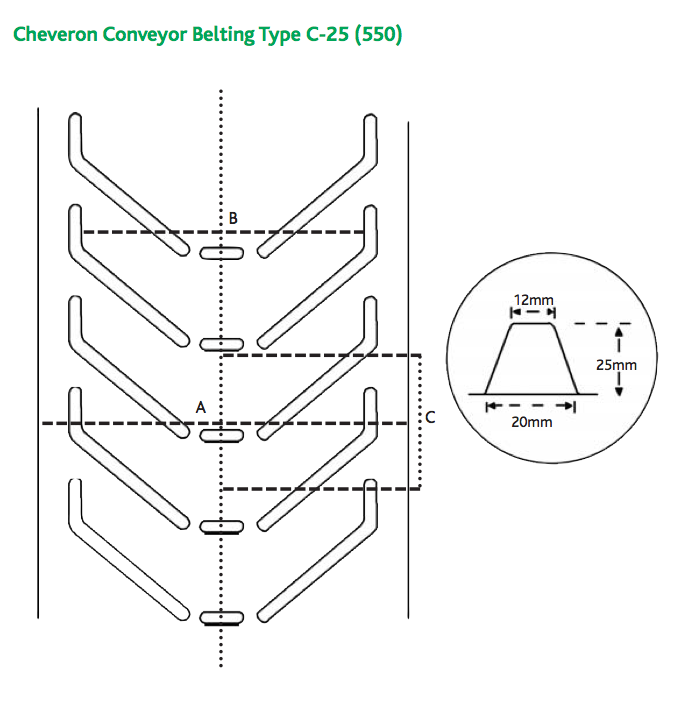

Profiles we offer
